YB3-225S-4 Explosion Proof Motor 380V 660V IP55 Three Phase AC Induction Motor

Product Categories
Bimo Machinery Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

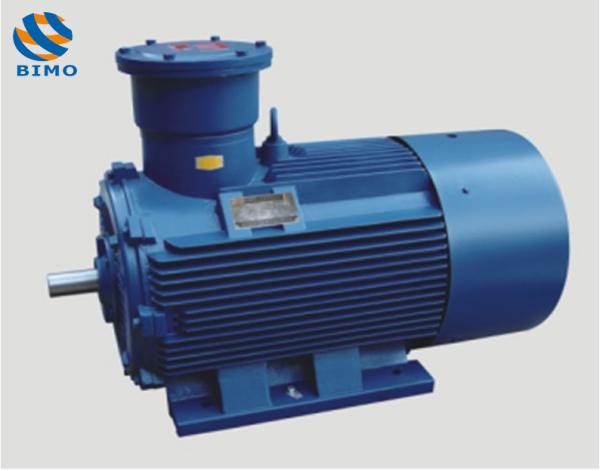

YB3-225S-4 Explosion Proof Motor 380V 660V IP55 Three Phase AC Induction Motor

  • 1
  • 2

Brand Name : BM

Model Number : YB3-225S-4

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotation

Payment Terms : T/T

Supply Ability : 1000 PC per month

Delivery Time : 25 days

Packaging Details : Carton/wooden case/pallet

Name : Explosion Proof Motor

Mounting : B3 Foot /B5 Flange /B35 Foot and Flange

Rated Voltage : 380V/660V

Rated Frequency : 50HZ/60HZ

Cooling Way : IC411

Rated Power : 110~250kW

Contact Now

High Quality YB3-225S-4 Explosion- Proof Three Phase AC Electrical Induction Motor Electric Motor

1, This Explosion-proof Electric Motor 1000 rpm adopts forced ventilation of Flame-proof axial flow fan.

2, The separate fan is unrestricted from motor speed so as to assure the motor operation in a constant power and at a high frequency and also maintain the constant torque output at a low frequency.

No. of Poles

2P, 4P, 6P, 8P, 10P
Power Scope

110~250kW
Voltage

380V/660V
Frequency

50/60Hz
Synchronous Speed

3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm
Protection Grade

IP55
Insulation Class

F
Mounting Type

IM V1
Connection

Delta/Y
Mark of Explosion-proof

Exd II B T4 Gb, Exd II C T4 Gb
Cooling Type

IC416
Efficiency Class

IE3
Duty

S1

YB3-225S-4 Explosion Proof Motor 380V 660V IP55 Three Phase AC Induction MotorYB3-225S-4 Explosion Proof Motor 380V 660V IP55 Three Phase AC Induction MotorYB3-225S-4 Explosion Proof Motor 380V 660V IP55 Three Phase AC Induction MotorYB3-225S-4 Explosion Proof Motor 380V 660V IP55 Three Phase AC Induction Motor

FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
