300HP 1500rpm NEMA Premium Efficient Motor 220KW VHS Motor With SKF bearing

Brand Name : BM

Model Number : VHS280-6-4

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T

Supply Ability : 1000PC per month

Delivery Time : 25days

Packaging Details : wooden case

Name : NEMA Premium Efficient Motor

Insulation Class : F

Power : 220KW/300HP

Standard : IEC/NEMA standard

Protection : IP54

Voltage : 380/660V

Contact Now

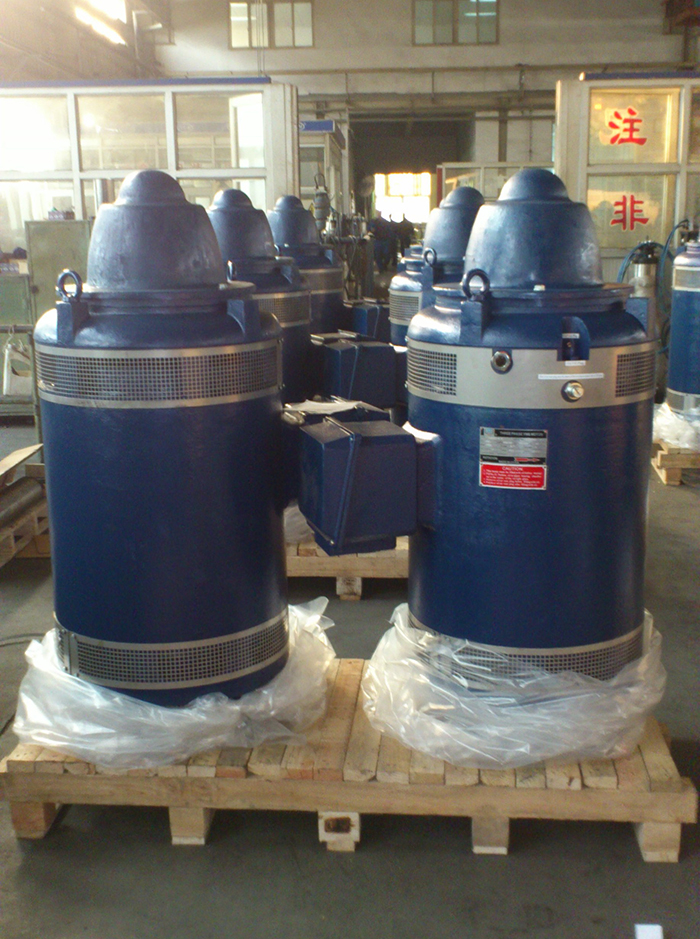

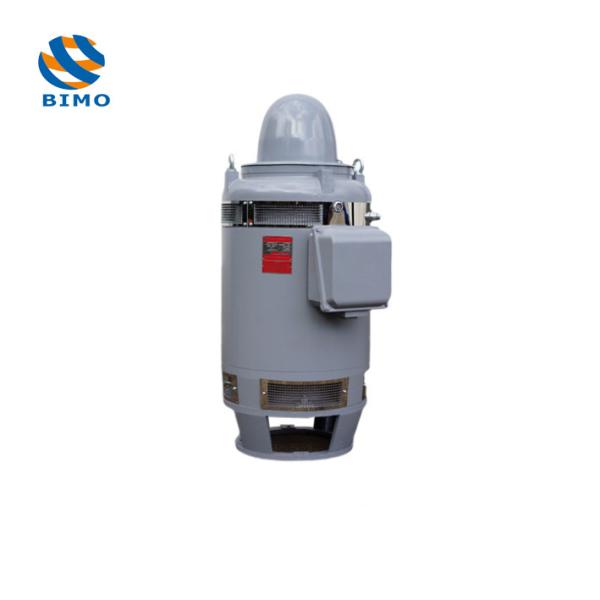

300HP 1500rpm NEMA Premium Efficient VHS Vertical Hollow Shaft Motor With SKF bearing

1, Series VHS vertical hollow-shaft motors, the latest product of our factory, are three phase squirrel cage induction motors specially for driving vertical deep-vell turbine pumps.


2, The motors are of high efficiency, high starting torque, quiet-running, low vibration, low temperature rise, can sustain heavy axial thrust load, have compact and reliable structure with easy maintenance etc. The rated output grades conform to the IEC standard.

3, After being fitted with vertical pumps, the motors are widely in pumping underground water in mines, city, farm and factories etc.The degree of protection is weather-protected type1(drip-proof).

Model Rated
Output
(hp/kW)		 Rated
Current
(A)		 Rated
Voltage
(V)		 Rated
Frequency
(Hz)		 Synchronous
Speed
(r/min)		 Down Thrust
(Standard)		 Insulation
Class		 Degree of
Protection
(N) (Ib)
VHS160-1-2 15/11 22.5/22 380 50 3000 9800 2200 B,F IP23
VHS160-2-2 20/15 30
VHS160-1-4 15/11 23/22.5 1500 12740 2860
VHS160-2-4 20/15 30
VHS180-1-2 25/18.5 36 380 50 3000 12740 2860 B,F IP23
VHS180-2-2 30/22 43/42.5
VHS180-1-4 25/18.5 37 1500 15680 3520
VHS180-2-4 30/22 43.5/43
VHS200-1-2 40/30 58 380 50 3000 16660 3740 B,F IP23
VHS200-2-2 50/37 70.5/70
VHS200-1-4 40/30 58.5 1500 21560 4850
VHS200-2-4 50/37 72/71
VHS200-3-4 60/45 85/85.5
VHS250-1-4 75/55 105.5/103.5 380 50 1500 28420 6390 B,F IP23
VHS250-2-4 100/75 139.5/140
VHS250-3-4 125/90 173/167.5
VHS280-1-4 150/110 205.5/202 380 50 1500 39200 8810 B,F IP23
VHS280-2-4 175/132 238/241
VHS280-3-4 200/150 275/276
VHS280-4-4 250/185 348/345
VHS280-5-4 270/200 374/371
VHS280-6-4 300/220 415/408
VHS355-1-4 380/280 500 380 50 1500 63560 14000 F IP23
VHS355-2-4 400/300 526/536
VHS355-3-4 430/315 565/563 108960 24000
VHS355-4-4 450/335 591/598
VHS355-5-4 480/355 630/634
VHS355-6-4 500/370 657/661
VHS132-1-2 7.5/5.5 11/0.8 380 50 3000 7840 1760 F IP54
VHS132-2-2 10/7.5 14.4/14.5
VHS180-1-2 15/11 22.5./22 380 50 3000 9800 2200 F IP54
VHS180-2-2 20/15 30
VHS180-1-4 15/11 23/22.5 1500 12740 2860
VHS180-2-4 20/15 30
VHS200-1-2 25/18.5 36 380 50 3000 12740 2860 F IP54
VHS200-2-2 30/22 43/42.5
VHS200-1-4 25/18.5 37 1500 15680 3520
VHS200-2-4 30/22 43.5/43
VHS225-1-2 40/30 56.8/58 380 50 3000 16660 3740 F IP54
VHS225-2-2 50/37 70.5/70
VHS225-3-2 60/45 83/85
VHS225-1-4 40/30 58/58.5 1500 21560 4850
VHS225-2-4 50/37 72/71
VHS225-3-4 60/45 85/85.5
VHS280-1-4 75/55 105.5/103.5 380 50 1500 28420 6390 F IP54
VHS280-2-4 100/75 139.5/140
VHS280-3-4 125/90 173/167.5
VHS315-1-4 150/110 205.5/202 380 50 1500 39200 8810 F IP54
VHS315-2-4 175/132 238/241
VHS315-3-4 200/150 275/276
VHS315-4-4 250/185 348/345 62720 14094
VHS315-5-4 270/200 374/371
VHS355-1-4 300/220 405.9/405 380 50 1500 74620 16770 F IP54
VHS355-2-4 350/260 480/475
VHS355-3-4 380/280 513.6/515
VHS355-4-4 400/300 539.2/550
VHS355-5-4 430/315 576.9/575
VHS355-6-4 450/335 614/615
VHS355-7-4 480/355 645.9/650
VHS355-8-4 500/375 671.3/685
