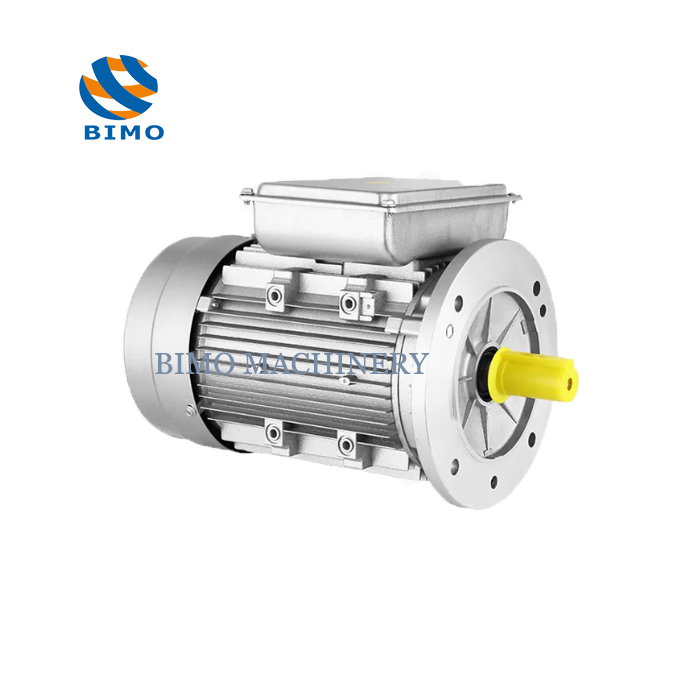

YL Series B5 IP55 Single Phase Aluminium 220V 2HP 1400rmp Asynchronous Motor for Air Compressor
1, YL series single-phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard,
2, newly developed by our company with low noise, compact construction, light weight, easy maintenance etc.
3, These motors are widely used Water pump, fan, transportation machinery, mixer, agricultural machinery, food machinery, woodworking machinery, boiler equipment,reducer, hydraulic equipment, air compressor, medical equipment and other mechanical supporting equipment with only single-phase power supply
Franme
reference
and size | Rated
power | Full load
sreed in
revolutions
per minute | Full load
current at
rated
voltage | Exciter
Voltage | Efficiency | Power
factor | Direct on ine
starting torque
ratio | Direct on
linepull out
torque
ratio | Diect on line
starting current
ratio | Mean sound
pressure
level@1mon
noload | Start
Capacitor | Running
Capacitor | Weight |
| Type | Output
(KW) | Speed
(r/min) | Amps
(A) | Voltage
(V) | EFF.
(%) | P.F.
Cos | LRT
RLT | BDT
RLT | LRA
RLA | Noise
LwdB(A) | (uf/v) | (uf/v) | Weight
(kg) |
| YL711-2 | 0.37 | 2800 | 2.7 | 220 | 67 | 0.92 | 1.8 | 1.6 | 5.5 | 72 | 50/250 | 8/450 | 10 |
| YL712-2 | 0.55 | 2800 | 3.9 | 220 | 70 | 0.92 | 1.8 | 1.6 | 5.5 | 72 | 100/250 | 15/450 | 11 |
| YL711-4 | 0.25 | 1400 | 2.0 | 220 | 62 | 0.92 | 1,7 | 1.6 | 5.0 | 67 | 75/250 | 15/450 | 9 |
| YL712-4 | 0.37 | 1400 | 2.8 | 220 | 65 | 0.92 | 1.7 | 1.6 | 5.0 | 67 | 75/250 | 15/450 | 10 |
| YL801-2 | 0.75 | 2800 | 4.9 | 220 | 73 | 0.95 | 1.8 | 1.6 | 5.5 | 75 | 100/250 | 25/450 | 14 |
| YL802-2 | 1.1 | 2800 | 7.0 | 220 | 75 | 0.95 | 1.8 | 1.6 | 5.5 | 75 | 100/250 | 30/450 | 15 |
| YL801-4 | 0.55 | 1400 | 3.95 | 220 | 69 | 0.92 | 1.7 | 1.6 | 5.0 | 70 | 100/250 | 15/450 | 13 |
| YL802-4 | 0.75 | 1400 | 5.05 | 220 | 71 | 0.95 | 1.7 | 1.6 | 5.0 | 70 | 100/250 | 25/450 | 14 |
| YL90L1-2 | 1.5 | 2800 | 9.4 | 220 | 76 | 0.95 | 1.8 | 1.6 | 5.5 | 78 | 200/250 | 40/450 | 22 |
| YL90L-2 | 2.2 | 2800 | 13.7 | 220 | 77 | 0.95 | 1.7 | 1.6 | 5.5 | 78 | 300/250 | 50/450 | 24 |
| YL90L1-4 | 1.1 | 1400 | 7.3 | 220 | 72 | 0,95 | 1.7 | 1.6 | 5.0 | 73 | 150/250 | 30/450 | 21 |
| YL90L-4 | 1.5 | 1400 | 9.7 | 220 | 74 | 0.95 | 1.7 | 1.6 | 5.0 | 73 | 200/250 | 40/450 | 23 |
| YL100L-2 | 3 | 2800 | 18.2 | 220 | 79 | 0.95 | 1.7 | 1.6 | 6.0 | 83 | 350/250 | 55/450 | 24 |
| YL100L1-4 | 2,2 | 1400 | 13,9 | 220 | 76 | 0.95 | 1,7 | 1.6 | 5.0 | 78 | 300/250 | 50/450 | 32 |
| YL100L2-4 | 3 | 1400 | 18,4 | 220 | 78 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 350/250 | 55/450 | 33 |
| YL112M-2 | 3,7 | 2800 | 22,1 | 220 | 80 | 0.95 | 1,7 | 1,6 | 6.0 | 83 | 350/250 | 60/450 | 46 |
| YL112M-4 | 3.7 | 1400 | 22.4 | 220 | 79 | 0.95 | 1.7 | 1.6 | 5.5 | 83 | 350/250 | 60/450 | 44 |
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
